Single-Key Low-Power Touch Switch HX-TK3301
Overview: 1-CH single-color / 2-CH dual-tri-color strips; hi/lo-voltage anti-fog; memory.
Product Details
| Feature | Specification |
|---|---|
| Product Size: | 65.6×57.7×10.9mm (L×W×H, incl. bracket) |
| Operating Voltage: | DC12V (24V not supported in this version) |
| Key Backlight: | Blue standby / white on (customizable) |
| Max Load, 1-CH Strip: | 12V-48W (customizable) |
| Max Load, 2-CH Strip: | 12V-96W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | AC110V-66W / AC220V-132W |
| Max LV Anti-Fog Load: | DC12V-36W/60W, DC24V-72W/120W (no extra relay needed; external relay optional; built-in relay opens anti-fog with no noise / no spark / no cycle limit). |
| Brightness: | 5%–100% |
| Color Temp: | Continuous (cool→warm) / stepped (cool–neutral–warm) |
| Sensing: capacitive touch; glass | 3–6mm |
| Optional: | 1. Power-off memory |
| 2. Scheduled off / auto anti-fog off | |
| 3. Double-click toggles light & anti-fog | |
| 4. Fade in/out, stepless dimming & CCT; backlight blinks at limits | |
| 5. Bluetooth name & password customizable (alphanumeric) | |
| [Note] | Custom logic available; final per samples. |

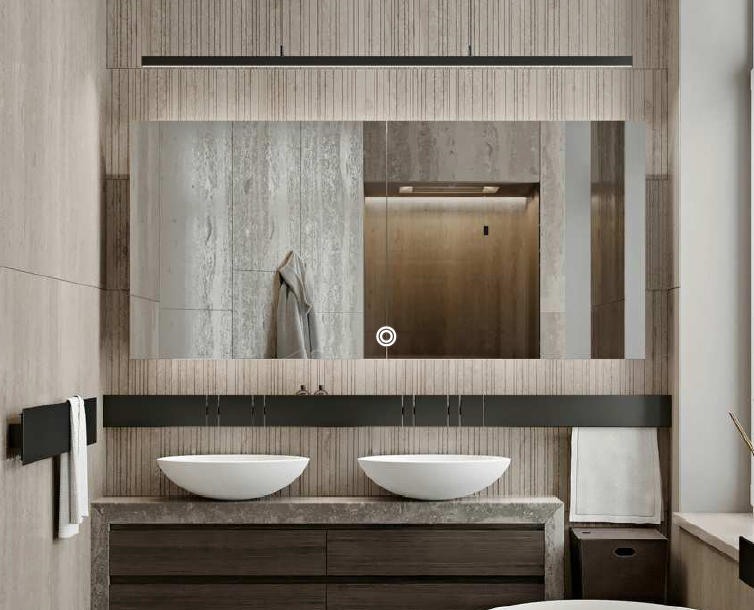

Customer Case
