Single-Key Battery Touch Switch HX-TK2901
Overview: 1-CH single-color / 2-CH dual-tri-color strips; no anti-fog; memory.
Product Details
| Feature | Specification |
|---|---|
| Product Size: | 65.6×57.7×10.9mm (L×W×H, incl. bracket) |
| Operating Voltage: | Battery-powered, 4.5–12V dry cells |
| Key Backlight: | Blue standby / white on (customizable) |
| Max Load, 1-CH Strip: | 12V (8 dry cells in series): 36W 9V (6 cells): 27W 6V (4 cells): 18W 4.5V (3 cells): 13.5W |
| Max Load, 2-CH Strip: | 12V (8 cells): 36W + 36W 9V (6 cells): 27W+27W 6V (4 cells): 18W+18W 4.5V (3 cells): 13.5W+13.5W |
| Max Anti-Fog Load: | N/A |
| Sensing: capacitive touch glass | 3–6mm |
| Optional: | 1. Power-off memory 2. Double-click toggles light 3. in/out, stepless dimming & CCT; backlight blinks at limits |
| [Note] | Custom logic available; final per samples. |

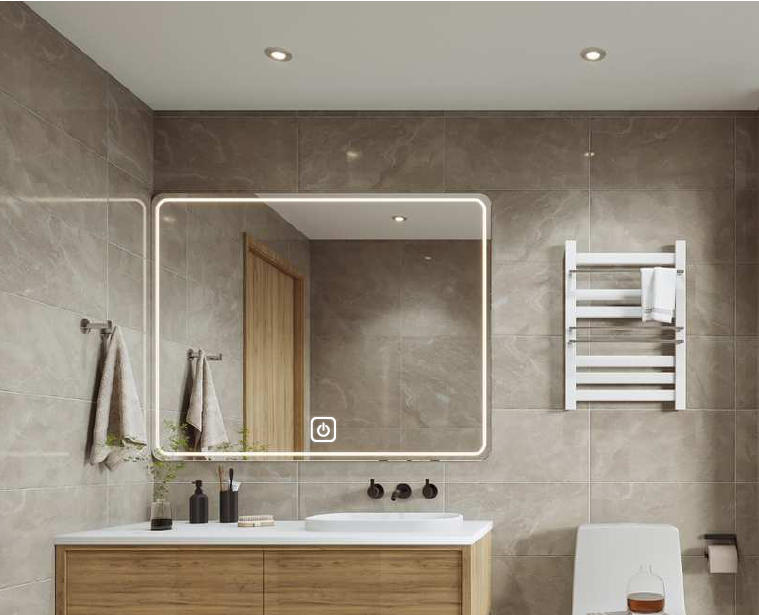

Customer Case
