Single-key high-power touch switch HX-TK4001
Function Overview: Controls single-channel light strips with single color, dual light strips with dual or triple colors, high and low voltage anti-fog, memory function.
Product Details
| Parameter / Feature | Details |
|---|---|
| Product Dimensions | 60 * 60 * 10.5 mm (Length * Width * Height) |
| Operating Voltage | DC12V / DC24V |
| Button Backlighting | Standby: blue; Function enabled: white (customizable) |
| Max. Load W (1 channel) | 12V: 65W / 100W, 24V: 130W / 200W (customizable) |
| Max. Load W (2 channels) | 12V: 130W / 200W, 24V: 260W / 400W (dual-channel half-power reduction, customizable) |
| Max. HV Anti-fog Film Load | AC110V: 66W, AC220V: 132W |
| Max. LV Anti-fog Film Load | DC12V: 36W / 60W, DC24V: 72W / 120W |
| Brightness Adjustment | No relay required; external relay optional; built-in relay drives anti-fog silently |
| Color Temp. Adjustment | Continuous adjustment (cold → warm) / stepped adjustment (cool → neutral → warm) |
| Principle of Touch Sensing | Capacitive touch |
| Glass Thickness Sensor | 3–6 mm |
| Optional Features | 1. Power-off memory 2. Lights off and fog off at scheduled times 3. Double-click to switch light; double-click to switch to anti-fog 4. Gradual on/off, stepless dimming; color temp limit indicator; backlight flash on switch 5. Bluetooth: customizable name & password (alphanumeric) |
| Note | Supports multiple personalized logic function customizations; specific logic functions are subject to actual sample submission. |

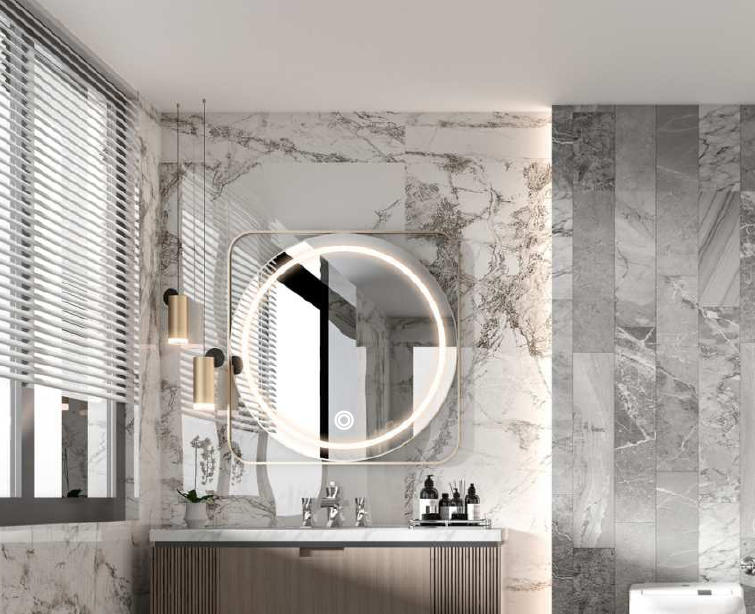

Customer Case
