Ultra-Thin 4-Key + Display + BT + Radar ZRY-BA7124
Overview: 1-CH single-color / 2-CH dual-tri-color strips; anti-fog; time/date/week display; mirror-touch + presence sensing; memory.
Product Details
| Model: | ZRY-BA7126 |
|---|---|
| Product Size: | 166.3×104.3×10mm (L×W×H) |
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | White always-on (fixed) |
| Time & Temp: | 12H/24H; super-cap keeps running ~7 days off-grid; °C/°F |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | AC110V-66W / AC220V-132W |
| Max LV Anti-Fog Load: | DC12V-36W/60W, DC24V-72W/120W |
| (No extra relay needed; external relay optional; built-in relay drives anti-fog silently — no noise/spark/cycle limit) | |
| Brightness: | 5%–100% |
| Color Temp: | continuous (cool→warm) / stepped (cool–neutral–warm) |
| Sensing: | capacitive touch; |
| Glass | 3–6mm |
| Sensing: radar (microwave) on/off, 1–3 m in 4 steps; disable-able to mirror-touch control | |
| …disable-able to mirror-touch control. | |
| Optional: | 1. Power-off memory 2. User-settable scheduled off 3. Double-click toggles |
| 4. Fade in/out, etc. 5. BT name & password customizable (alphanumeric) | |
| 6. Mirror-touch answer/hang-up, hands-free calls 7. FM radio / USB music | |
| (either) | |
| 8. Black/blue screen 9. Multiple speaker sizes — see speaker spec 10. … |

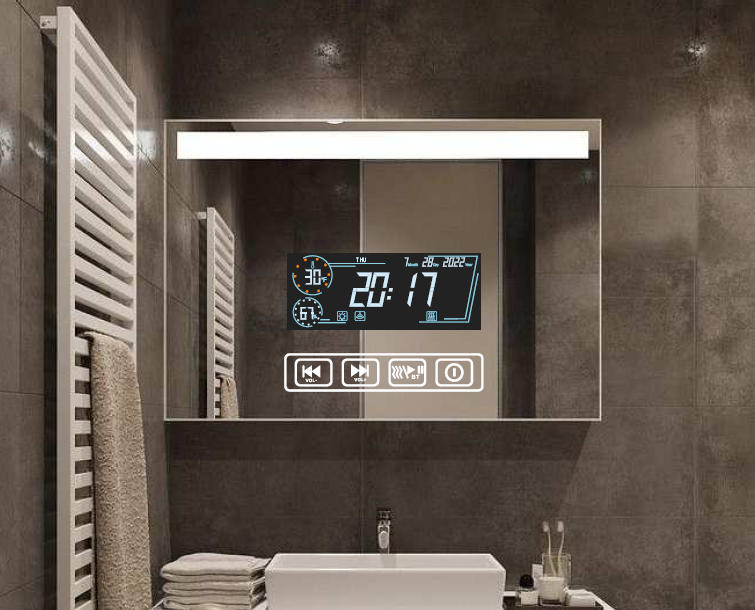

Customer Case
