2-Key + Time & Temp + Radar HX-TK1142
Overview: 1-CH single-color / 2-CH dual-tri-color strips; anti-fog; time/temp/week; mirror-touch + presence sensing.
Product Details
| Product Size: | 142×46×11mm (L×W×H) |
|---|---|
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | Blue standby / white on (customizable) |
| Time & Temp: | 12H/24H, optional date; super-cap keeps running ~7 days off-grid; °C/°F |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | External Relay |
| Max LV Anti-Fog Load: | DC12V-36W |
| Brightness: | 5%–100% |
| Color Temp: | Continuous (cool→warm) / stepped (cool–neutral–warm) |
| Sensing: | capacitive touch; |
| glass | 3–6mm |
| Sensing: | radar on/off, 1–3 m in 4 steps; disable-able to mirror-touch control |
| Optional: | 1. Power-off memory |
| 2. Pre-set auto anti-fog off for forgotten fog (default: 1h) | |
| 3. Fade in/out, stepless dimming & CCT; backlight blinks at limits | |
| 4. Bluetooth name & password customizable (alphanumeric) | |
| 5. … | |
| [Note] Custom logic available; final per samples. |

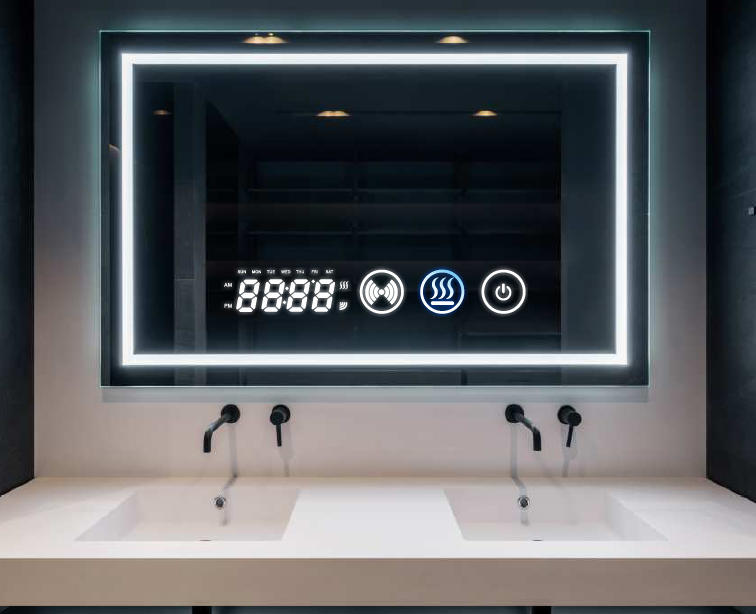

Customer Case
