Hand-Wave + Radar ZRY-TK4231
Overview: 1-CH single-color / 2-CH dual-tri-color strips; anti-fog; radar on/off; hand-wave CCT switching, stepless dimming & CCT.
Product Details
| Product Size: | 60×60×10.5mm (L×W×H) |
|---|---|
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | Blue standby / white on (customizable) |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | AC110V-66W / AC220V-132W |
| Max LV Anti-Fog Load: | DC12V-36W/60W,DC24V-72W/120W。 |
| Brightness: | 5%–100% |
| Color Temp: | Continuous (cool→warm) / stepped (cool–neutral–warm) |
| Radar Range: | Radar (microwave) on/off, 1–3 m (customizable) |
| Hand-Wave Range: | 5–15 cm |
| Optional: | 1. Power-off memory |
| 2. Scheduled off / auto anti-fog off | |
| 3. Fade in/out, stepless dimming & CCT; backlight blinks at limits | |
| 4. … |

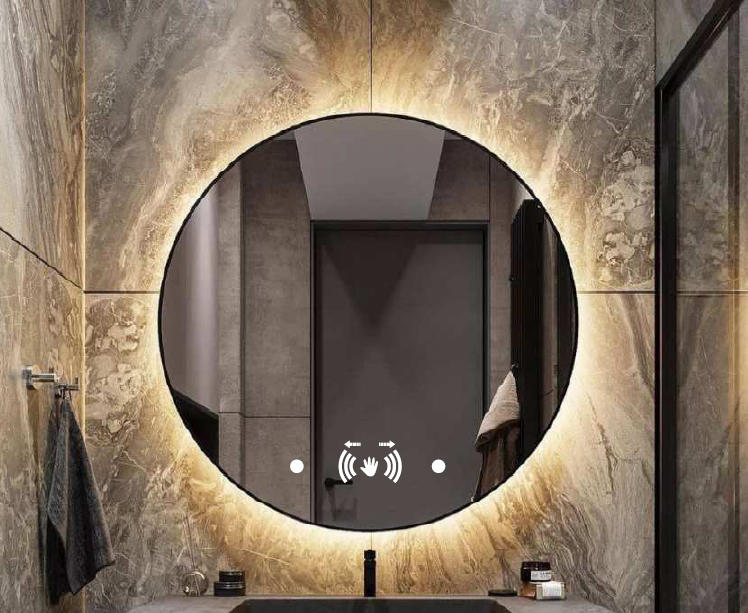

Customer Case
