4-Key Bluetooth (Basic) BA0004
Overview: tri-color light, stepless dimming, anti-fog (auto-off 1h if forgotten) + Bluetooth; memory & power-off memory…
Product Details
| Product Size: | 110×50×11mm (L×W×H) |
|---|---|
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | Blue standby / white on (customizable) |
| Time & Temp: | / |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | Built-in 2A relay / external relay |
| Max LV Anti-Fog Load: | DC12V-36W/60W,DC24V-72W/120W。 |
| Brightness: | 5%–100% |
| Color Temp: | Continuous (cool→warm) / stepped (cool–neutral–warm) |
| Sensing: | capacitive touch; |
| glass | 3–6mm |
| Optional: | 1. Power-off memory |
| 2. Scheduled off / auto anti-fog off | |
| 3. Double-click toggles light & anti-fog | |
| 4. Fade in/out, stepless dimming & CCT; backlight blinks at limits | |
| 5. Presence sensing | |
| 6. Bluetooth name & password customizable (alphanumeric) | |
| 7. … | |
| [Note] Custom logic available; final per samples. |

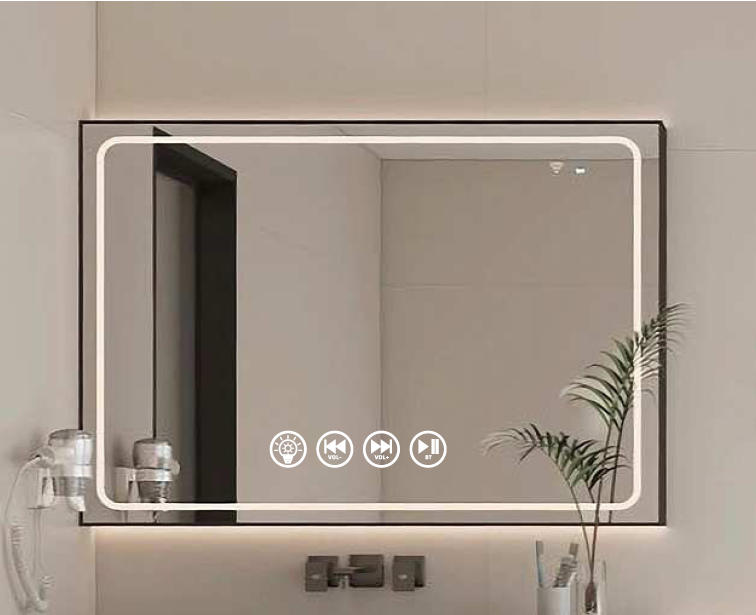

Customer Case
