3-Key with Display (CN/EN Version) ZRY-BA7273
Overview: Time/temp/humidity/date display + RGB (dynamic & static colors) + 1/2/3-color LED + anti-fog + BT (opt.) + radar (opt.) + auto anti-fog (opt.).
Product Details
| Product Size: | 166×104×10.5mm (L×W×H) |
|---|---|
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | White always-on |
| Time & Temp: | 12H/24H, optional date; super-cap keeps running ~7 days off-grid; °C/°F |
| Max Load, 1-CH LED strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH LED strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | AC110V-66W / AC220V-132W |
| RGB strip: any length; dynamic effects (colorful, meteor, breathing) and static colors (white, multicolor, | |
| red, yellow, green, cyan, blue, purple) | |
| Max LV Anti-Fog Load: | DC12V-36W/60W, DC24V-72W/120W (no extra relay needed; external relay optional; built-in relay |
| opens anti-fog with no noise). | |
| Auto anti-fog on/off (optional): | Off (or preset value) at factory. When bathroom humidity reaches a certain level and the mirror needs |
| anti-fog, read the displayed humidity and set it as the auto-trigger value — e.g., if fog appears at 75%, set | |
| 75% as the auto anti-fog threshold. | |
| Brightness: | 5%–100% |
| Color Temp: | Continuous (cool→warm) / stepped (cool–neutral–warm) |
| Radar Range: | Radar (microwave) on/off, 1–3 m (customizable) |
| Sensing: | capacitive touch; |
| glass | 3–6mm |
| Optional: | 1. Power-off memory 2. Scheduled off 3. Fade in/out, stepless dimming & CCT; backlight blinks at limits |
| 4. Bluetooth name & password customizable (alphanumeric) 5. … |

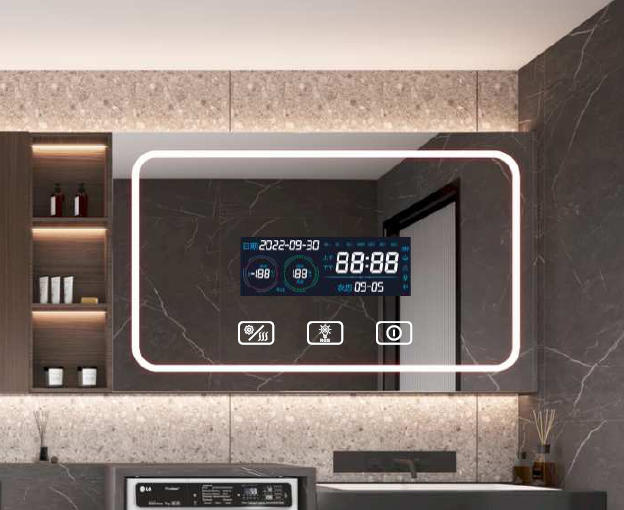

Customer Case
