3-Key HX-TK3303
Overview: Controls RGB colorful strips (meteor, breathing, comet, rainbow, running effects); memory.
Product Details
| Product Size: | 119×73×11mm (L×W×H) |
|---|---|
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | Blue standby / white on (customizable) |
| Time & Temp: | / |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: N/A | |
| Max LV Anti-Fog Load: N/A | |
| Brightness: | 5%–100% |
| Color Temp: | RGB effects |
| Sensing: | capacitive touch; |
| glass | 3–6mm |
| Optional: | 1. Power-off memory |
| 2. Scheduled off / auto anti-fog off | |
| 3. Double-click toggles light & anti-fog | |
| 4. Fade in/out, stepless dimming & CCT; backlight blinks at limits | |
| 5. Presence sensing | |
| 6. Bluetooth name & password customizable (alphanumeric) | |
| 7. … | |
| [Note] Custom logic available; final per samples. |

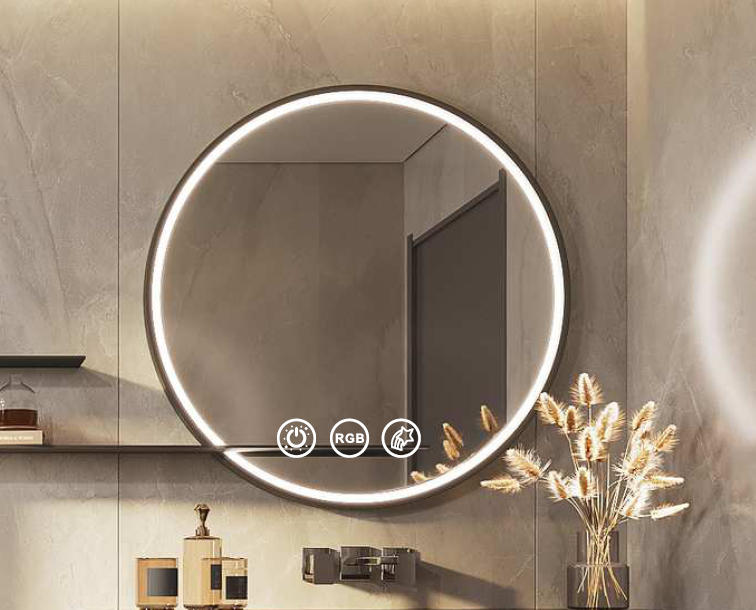

Customer Case
