1-Key RGB or 1-Key Single/Dual-Color Flowing Strip ZRY-TK4301
Overview: RGB strips (multi-color combos: red/yellow/green/cyan/blue/purple) or 1-CH single-color / 2-CH dual-color flowing strips; anti-fog (on with light); memory.
Product Details
| Product Name: | 1-Key RGB or 1-Key Single/Dual-Color Flowing Strip |
|---|---|
| ZRY-TK4301 | |
| Product Size: | 60×60×10.5mm (L×W×H) |
| Operating Voltage: | DC12V/DC24V |
| Key Backlight: | Blue standby / white on (customizable) |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (customizable) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (dual-CH half-power, customizable) |
| Max HV Anti-Fog Load: | AC110V-66W / AC220V-132W |
| Max LV Anti-Fog Load: | DC12V-36W/60W, DC24V-72W/120W |
| (No extra relay needed; external relay optional; built-in relay drives anti-fog silently — no noise/spark/cycle limit) | |
| Brightness: | 5%–100% |
| Color Temp: | stepless (cool→warm) / stepped (cool–neutral–warm) |
| Sensing: | capacitive touch; |
| glass | 3–6mm |
| Optional: | 1. Power-off memory |
| 2. Scheduled off / auto anti-fog off | |
| 3. Double-click toggles light & anti-fog | |
| 4. Fade in/out, stepless dimming & CCT; backlight blinks at limits | |
| 5. Bluetooth name & password customizable (alphanumeric) | |
| 6. … |

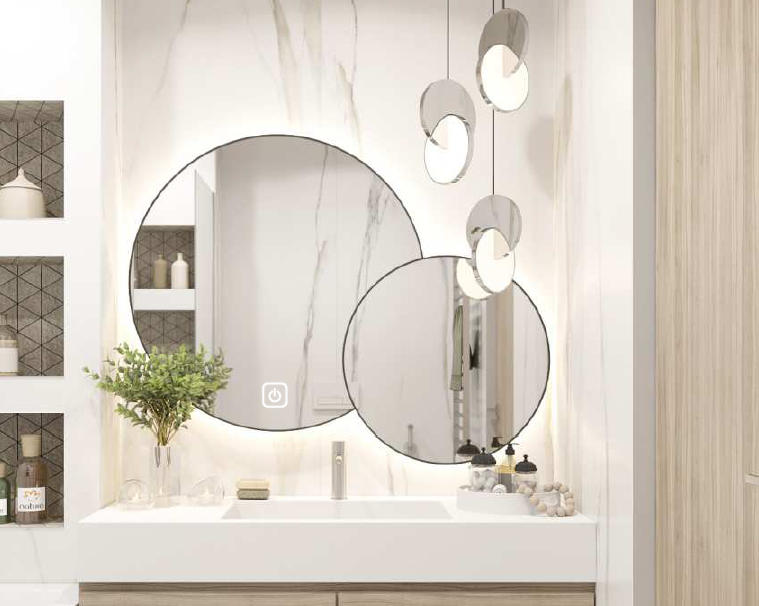

Customer Case
