1-Key RGB or 1-Key Single/Dual-Color Flowing Strip ZRY-TK4301
Overview: RGB strips (multi-color combos: red/yellow/green/cyan/blue/purple) or 1-CH single-color / 2-CH dual-color flowing strips; anti-fog (on with light); memory.
Product Details
| Product Size: | 150×100×10.9mm (L×W×H, incl. bracket) |
|---|---|
| Operating Voltage: | DC12V/DC24V (subject to sample) |
| Key Backlight: | LCD white always-on (see photos) |
| Max Load, 1-CH Strip: | 12V-65W / 24V-130W (subject to sample) |
| Max Load, 2-CH Strip: | 12V-130W / 24V-260W (subject to sample) |
| Max HV Anti-Fog Load: | External Relay |
| Max LV Anti-Fog Load: | DC12V-36W/60W, DC24V-72W/120W (subject to sample) |
| Brightness: | 5%–100% |
| Color Temp: | Continuous (cool→warm) / stepped (cool–neutral–warm) |
| Sensing: | capacitive touch; |
| glass | 3–6mm |
| Overview: | one key controls tri-color strip on/off, brightness & CCT; one key controls anti-fog; |
| Wi-Fi auto-updates local time/temp/date/humidity/wind/PM2.5 | |
| Optional: | customizable per customer |
| [Note] Custom logic available; final per samples. |

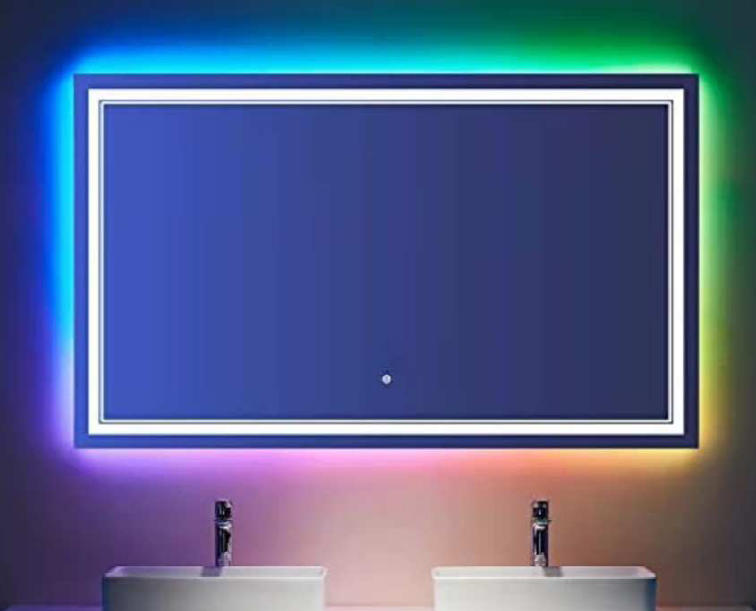

Customer Case
